MSA M1 SCBA with Quick Fill

Lowest Price Guaranteed

Categories: Buy Products, MSA M1 SCBA, SCBA

M1 Series

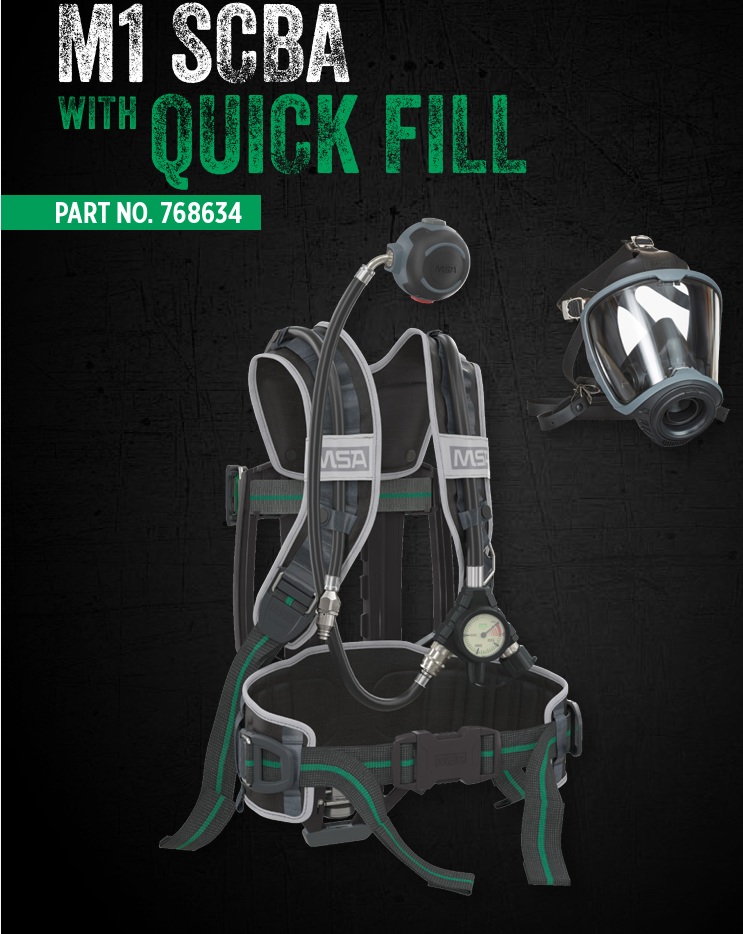

MSA M1 SCBA with Quick Fill

MSA M1 SCBA – Work SL configuration with integrated MSA QuickFill cylinder filling system. Features a non-adjustable basic backplate, advance padded harness with plastic buckles, twin-cylinder strap, SingleLine (SL) pneumatics with combination gauge, removable M1-AS LGDV with DV holder, and integrated QuickFill coupling for rapid in-service cylinder replenishment from a cascade or mobile compressor. G1 PS full face mask included. AS/NZS compliant. Suited to fire service and industrial operations where in-service air replenishment is required.

OEM Part Number / SKU

768634

Warranty

10 Years (manufacturing/workmanship defect)

Part Number

768634

Configuration

M1 SCBA Work SL with Quick Fill

Backplate

Non-adjustable (basic), no height adjustment

Waistbelt

Fixed

Harness

Advance (padded shoulder straps), plastic buckles

Cylinder Band

Twin-cylinder strap (2-cylinder compatible)

Pneumatics

SingleLine (SL) — alphaCLICK II cylinder connection, SL combination gauge

QuickFill System

Integrated MSA QuickFill coupling — rapid in-service cylinder refill

Full Face Mask

G1 PS (PS-MaXX push-to-connect), medium size

Operating Pressure

300 bar

Operating Temperature

'-40°C to +60°C

Approvals

Australia (BSI) M1 SCBA; AS/NZS compliant

Standards

EN 137:2006 Type 2; AS 4272

SingleLine SCOUT Compatible

Yes (direct retrofit to SL medium-pressure couplings)

Machine Washable

Yes (no disassembly required)

• Integrated MSA QuickFill coupling — enables rapid in-service cylinder refilling from a cascade or mobile compressor without removing the SCBA from the wearer
• SingleLine (SL) pneumatics — hose-in-hose technology routes all hoses within backplate, significantly reducing snagging hazard
• Advance padded harness — unique S-shape design minimises pressure points and slipping during extended operations
• Removable M1-AS LGDV with DV holder — tool-free removal allows fast sharing between wearers during turnarounds
• Twin-cylinder strap — supports dual-cylinder configurations for extended air duration operations
• AS/NZS compliant for Australian and New Zealand fire service and industrial operations
• Two SL medium-pressure couplings — enables direct connection of SingleLine SCOUT monitoring unit for full PASS/telemetry upgrade
• G1 PS full face mask included — wide field of vision, minimised pressure points; PS-MaXX push-to-connect
• Machine washable entire SCBA (no disassembly required); dust and water-repellant harness material
• Field-upgradeable to High SL configuration without factory return
• 10-year component warranty (manufacturing/workmanship defects)

Compatible Cylinders (sold separately):
– MSA Composite Cylinder 6.8 L / 300 bar — 768527 (no valve) / 768613 (with valve)
– MSA Composite Cylinder 9.0 L / 300 bar — 768629 (no valve) / 768639 (with valve)

QuickFill System Accessories:
– MSA Quick-Fill Hose and Cascade Adaptor (sold separately)
– MSA SCBA Fill Station / Cascade System
– SCBA Fill Hose with Whip-Check Safety Cable

Compatible Full Face Masks (additional sizes):
– G1 PS Full Face Mask — Small / Medium / Large (PS-MaXX push-to-connect)
– G1 Full Face Mask with HUD (Head-Up Display) — compatible with M1 Control Module

Monitoring & Connectivity Upgrades:
– SingleLine SCOUT Integrated Monitoring Unit (PASS + telemetry) — direct SL coupling retrofit
– M1 Control Module (digital pressure display, Bluetooth telemetry)
– C1 Communication Module (voice amplification)
– Gallet F1 XF Structural Firefighting Helmet (via mounting bracket)

Testing & Maintenance:
– MSA SmartCHECK Automatic Test Bench
– Genuine MSA M1 spare parts and service kits

Product Page (AU): https://au.msasafety.com/Supplied-Air-Respirators-(SCBA)/Self-Contained-Breathing-Apparatus-(SCBA)/MSA-M1-SCBA/pn/768634
